SOD Rise

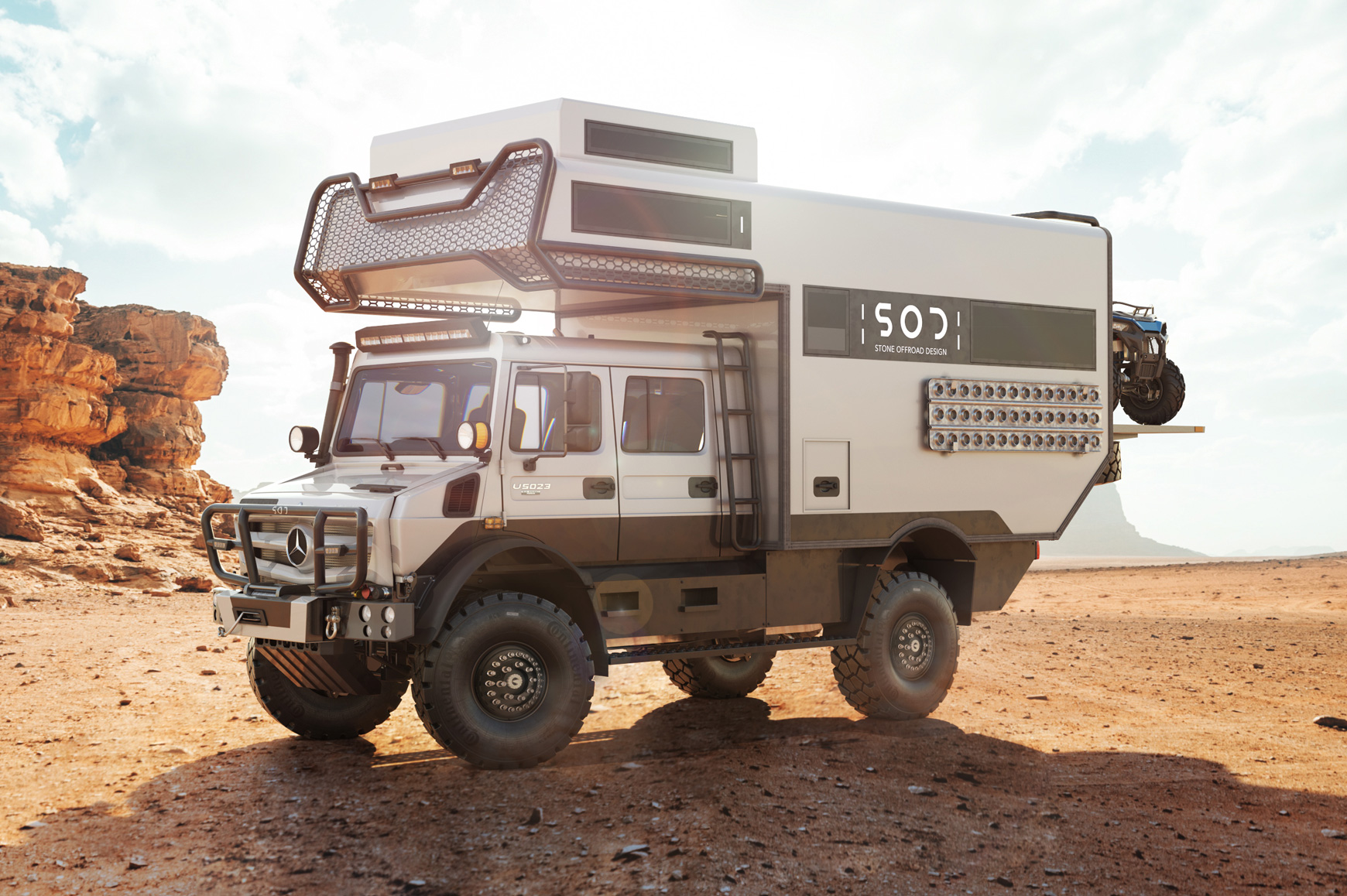

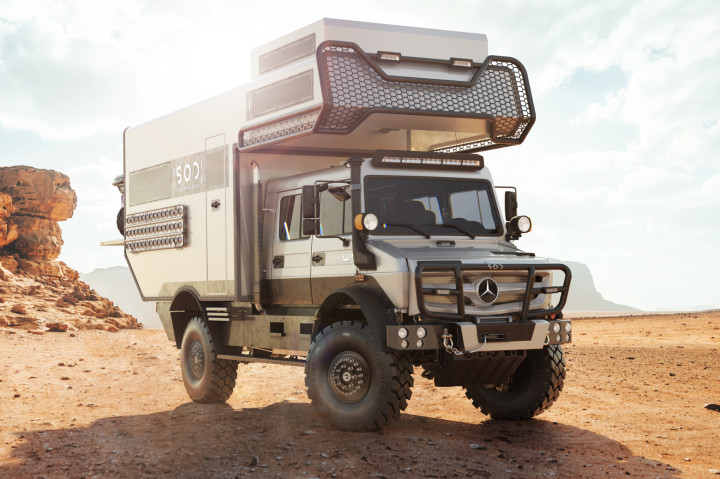

As the basis for our completely redesigned SOD RISE 4x4-5032, we have chosen the all-terrain Mercedes-Benz Unimog U5032 with 4 cylinders and 231 PS. The 4x4 Unimog with double cab offers everything we need as a platform for our off-road camper - sophisticated, robust technology, remarkable performance and absolute comfort for driver and passengers. The SOD basic configuration leaves nothing to be desired.
We will be happy to send you sales documents on request.
SOD Basic equipment
In our preconfigured basic equipment, the RISE already contains a number of useful features that can be ordered from the factory as special equipment.
- Engine output 170 kW (231 PS) / 292 kW (400 PS)
- Exhaust gas turbocharging and charge air cooling
- Weight variant 14.1 t (6.3 / 8.8)
- Extended cab (double cab)
- Wheelbase 3,850 mm
- 4x4 drive
- Fully synchronous reversing gear, UG100E, 8 Forward gears / 6 Revers gears
- Rear-mounted gearbox with off-road group
- Automatic Shift (EAS)
- Fording ability 1,200 mm
- Fuel preheating, with water separator
- High performance engine brake
- Power steering, hydraulic
- Cruise control / tempo set
- Differential lock on the front and rear axles
- Low pressure braking system
- Disc brakes, pneumatic, on VA and HA
- Rain sensor and automatic headlights
- Front window, clear, heatable electric windows
- Central locking, with master key
- Main mirror, heatable, electrically adjustable
- Multifunctional steering wheel
- Air suspension seat with seat heating for driver and front passenger
- 3-point automatic seat belts in the seat
- On-board diagnosis
- Air conditioning, heating and ventilation system, circulating air, dust filter
- Additional hot water heater, cab and engine
- Bi-halogen headlights, protected in the bumper, daytime running lights, fog lights
- Entry lights in the ascent area
- Stone guard for metal lights
- Self-rescue winch with winding device including remote control
- Generator 28 V / 150 A, protected against dirt, capable of fording
- On-board socket 24V / 25A in the cabine, with C3 signal
- Rearview camera including monitor, for camera system
- Maintenance interval, 1,400 operating hours / 35,000 km
- Guarantee for the 2nd and 3rd year
Eventually there may be deviations in the equipment features due to modifications by the manufacturer.
RISE Equipment
Outstanding interior and exterior ... through our conversions and expansion, a series vehicle is transformed into an extraordinary motorhome with a unique off-road look.
Here is an excerpt of our exclusive equipment. You will find the complete equipment in our sales documents, which we will gladly send you on request.
Exterior
- Offroad package
Off-road tires with painted rims (black) - Powder-coated roof rack (black)
- Rear ladder with rounded edges (powder-coated)
- LED light bar at the front (above and below) separately switchable
- LED single spotlights at the rear
- Underfloor lighting
indirect LED exterior lighting on the underside of the living area - Individual complete wrapping including window in the exclusive SOD design
- Removable cabin
The cabin can be completely separated from the chassis, easily set up with the help of leveling supports and operate almost independently thanks to the built-in technology

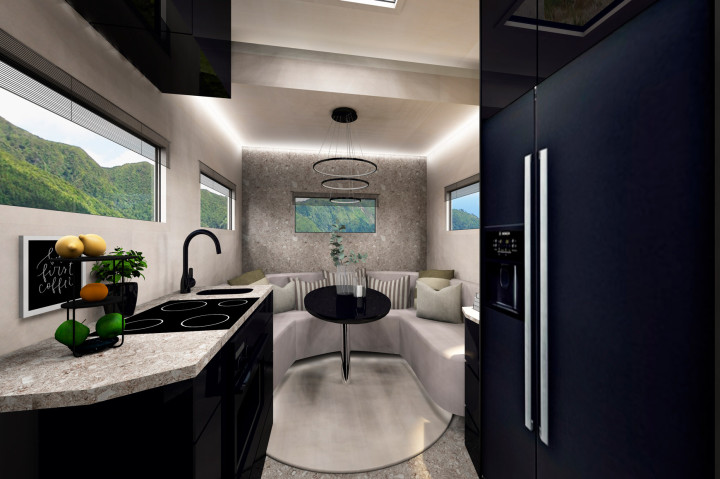

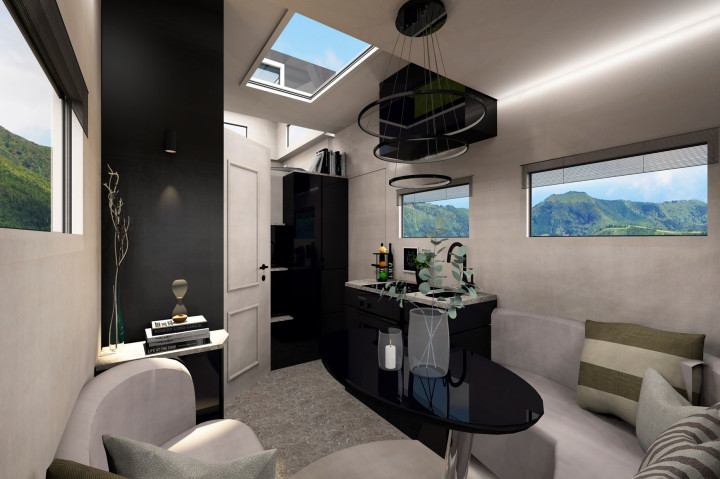

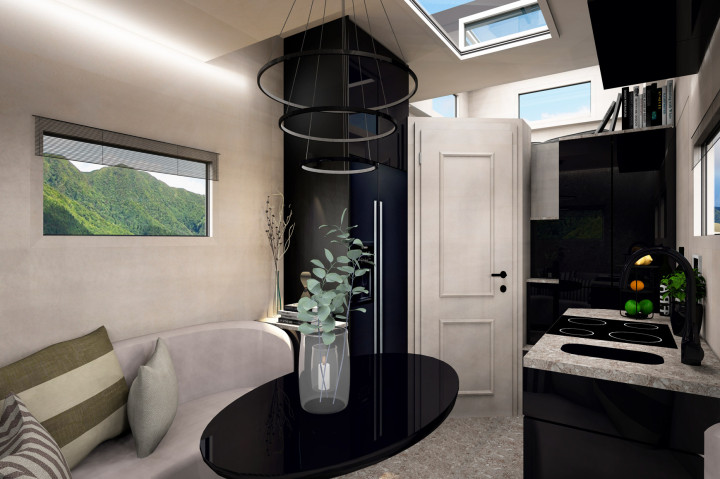

Interior
- Leather package (G-Class styling)
Driver, front passenger and rear seats in perforated leather with honeycomb quilting; sitting area in buffalo leather with decorative stitching; side panels and headlining in leather / alcantara - Furniture
overhead lockers, storage compartments in the living area, kitchen cabinet as well as all fronts, carcases, shelves, drawers and doors completely made of solid wood; solid wood table, painted in "Piano Black" - Floor and wall
Floor coverings and walls in the living room in marble look (porcelain stoneware) - Electrically lowerable floating bed in the rear, comfortable double bed 2.0 x 2.0 m with 2 mattresses

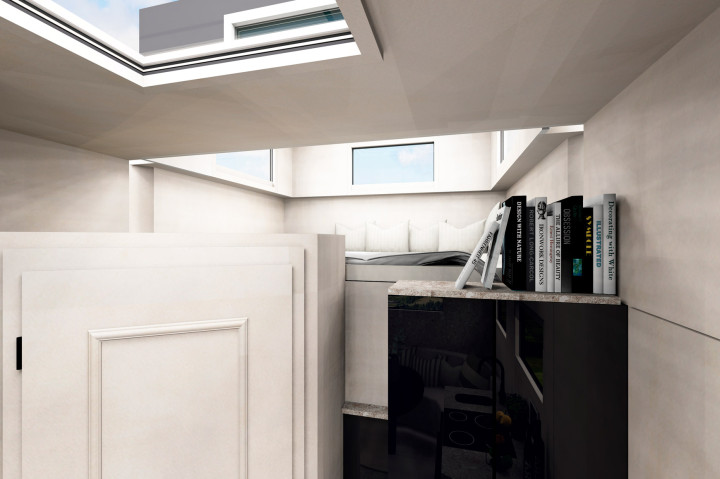

- Double bed in alcove 2.0 x 2.0 m with 2 mattresses,
- Alcove electrically extendable for more headroom
Eventually there may be deviations in the equipment features due to modifications by the manufacturer.
RISE Technical equipment
- Climate package (warm air, warm water, underfloor heating, air conditioning)
incl. 6 kW diesel heating combination device with integrated6 l boiler connected to the water circuit; electric underfloor heating; underfloor air conditioning - SOD sound package:
Specially developed and sound-optimized sound system with separate insulation - Smart media
Sound settings (subwoofer) as well as media and TV via smartphone control - Internet package
Dual-SIM LTE router (global version) including network connection and power supply, 5-port switch - Water package
Fresh water pump with pressure sensor including UV and sediment / carbon filter for filling and removal line according to Purion system; 16 l electric boiler
230 V; Multiple distributors with connections for hot and cold water circuit; Hot and cold outside withdrawal; approx. 600 l fresh water tank, 200 l gray water tank, 200 l black water tank; tank level sensors and connection to control unit; water sensors on the ground with electric valves for emptying the tanks; emergency drain in the base plate
- Heat exchanger
to use the engine cooling of the vehicle for the hot water preparation - Energy package
24 V 800 Ah Lithium Ion> 20 kW (1.6 kW solar) incl. Smart Battery Management System and voltage monitors; programmable cut-off relay for the truck starter battery for charging the body batteries; up to 1.6 kW solar energy with MPPT controller; 5 kW - 230 V AC inverter with integrated multi-charger; 24/12 V DC converter for 12 V consumers; 24 V DC, 12 V DC and 5 V USB network installation; Multi-loader, MPPT controller, converter and voltage monitor in VE network
summarized, controllable and evaluable using a monitor and VE Smart App; security terminal for direct connection of 24 V DC, 12 V DC and 230 V AC end consumers; External connections for 230 V shore power input and external draw-off of 230 V, 12 V and USB - Electrical appliances
12/24 V refrigerator drawer with stainless steel front 95 l; 12/24 V freezer drawer with stainless steel front 65 l; 230V oven or microwave grill combination device; 230 V 2-plate induction hob; 230 V extractor to the outside; 230 V coffee pod or capsule machine including reusable stainless steel capsule set
